Welcome to Shanghai Qiao Feng industrial co., LTD's website
Position
Home > Product > Spray drier

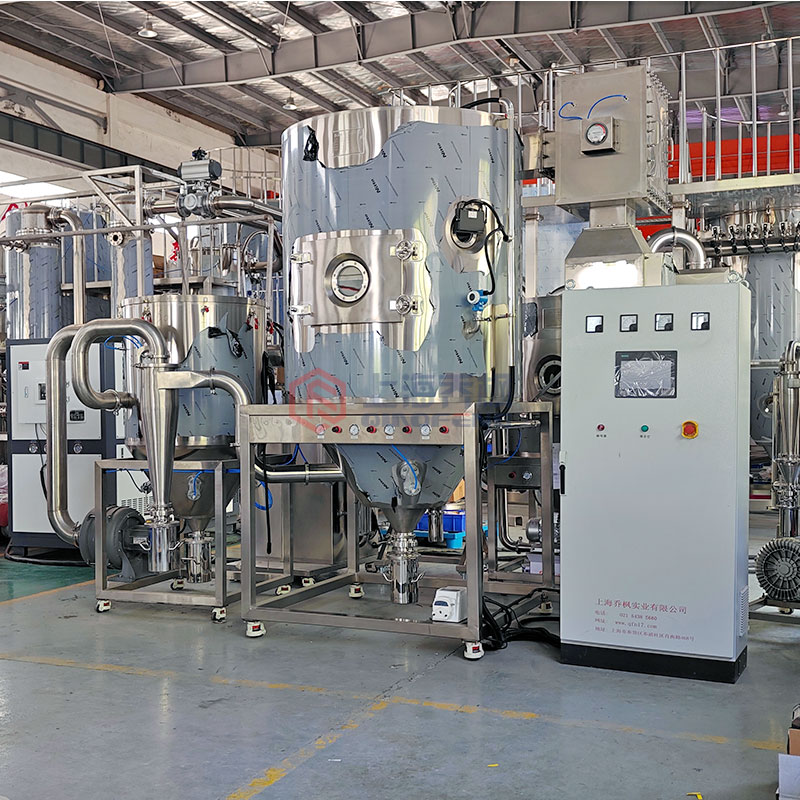

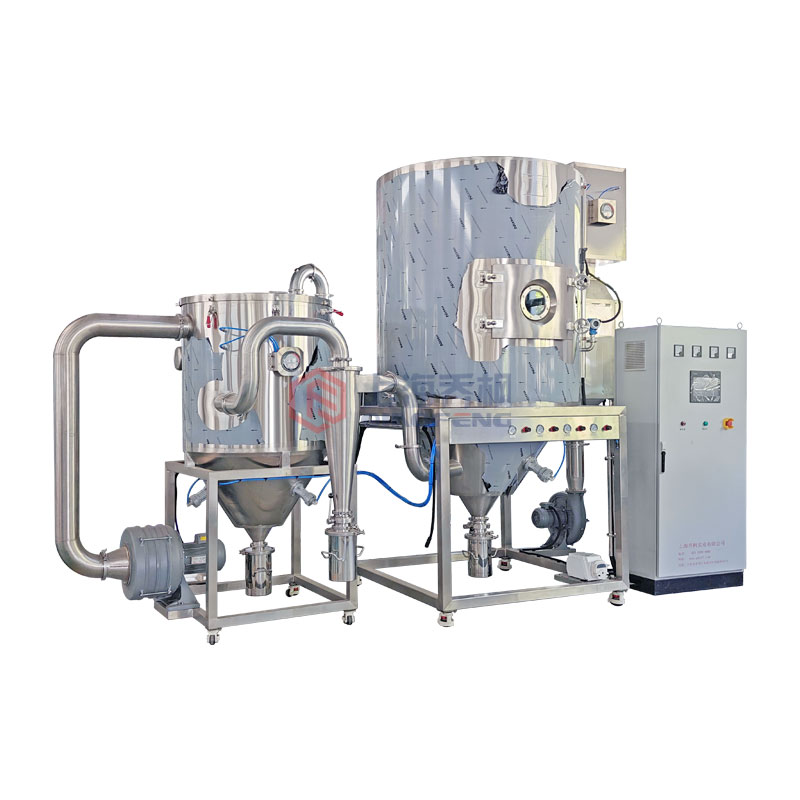

Centrifugal spray drier
Device name: High speed centrifugal spray dryer
Equipment type: qfn - l - 10
Equipment specifications: 5Kg/h (support customized)
Test machine: Support test making experiment
Scope of application: Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials.
Application scenario: Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed? National three year warranty
Telephone: 17317246351
Detail

1. product features:

  1. The electric centrifugal atomizer, centrifugal atomizing spray head, the particle size distribution of the material is steeper and the particle distribution is even.
  2. Color large touch screen operation, automatic control and manual control combined, Chinese and English panels, parameter LCD display.
  3. Real time control of PID thermostat control technology, accurate temperature control, heating temperature control accuracy of + 1 degrees Celsius.
  4. The drying speed is fast, generally only 1-1.5 seconds, with instantaneous drying characteristics.
  5. The drying process is completed in a short time, which is suitable for drying the heat sensitive material and keeping the original characteristics of the material.
  6. The production process is simplified, the intelligent operation of the touch screen is easy to control, and it is suitable for the experimental type.
  7. The product has good dispersibility, fluidity and solubility.

3. device parameters

Centrifugal spray dryer

qfn - l-Five

qfn - l-Ten

qfn - l - 15

Water evaporation

5Kg/h

10Kg/h

15Kg/h

Minimum feed volume

80ml

120ml

150ml

The diameter of the drying chamber (mm)

￠800

￠1200

￠1600

Height of dry tower (mm)

￠800

￠1200

￠1500

Atomization structure

Centrifugal atomizer (QFN-L-RODVER2018-1A) speed: 32000r/min (adjustable)

Electronic control system

Qiao Feng centrifugal atomization system (QFN-L-ES-VER2018-1A)

Maximum inlet temperature (centigrade)

Two hundred and sixty

Heater capacity

10kw

20kw

28kw

Air blower [power (kw), air volume (m /min)]

nothing

[0.25,9.5]

[0.25,9.5]

Draft fan [power (kw), air volume (m /h)]

[1.5，250]

[2.2，300]

[2.2，1410]

Compressor [power (kw), air volume (L /min)]

[0.58，108]

[1.5，250]

[1.5，250]

Electric power (installed capacity)

15kw

35kw

45kw

Thermal insulation material

50mm glass fiber insulated cotton

50mm glass fiber insulated cotton

50mm glass fiber insulated cotton

Shape size (mm) (L x W x H)

1600×1400×1800

2200×1600×2200

2600×1200×2500

Installation weight (Reference)

300kg

600kg

1000kg

Power supply

380V/-3: it can be customized according to different national standards.

Water vaporization at the inlet temperature of 250 degrees centigrade, 1:
2: for more evaporation equipment, please inquire online or call our company.
